Long-Frame Incline Conveyor

A long stainless incline conveyor built around a rigid open-frame structure, accessible drive components, and a clean product path.

Incline ConveyorOpen FrameStainless Construction

Long-frame stainless incline conveyor with open support structure

Project Overview

A closer look at the visible build details.

Designed around an extended incline path, this conveyor uses stainless construction, an open support frame, and visible drive-side components. The layout keeps the description focused on verified visual features and integration geometry.

Long stainless incline frame

Open support geometry

Accessible drive-side enclosure

Clean belt path along the incline

Custom frame configuration around conveyor length

Image Gallery

Selected project photos.

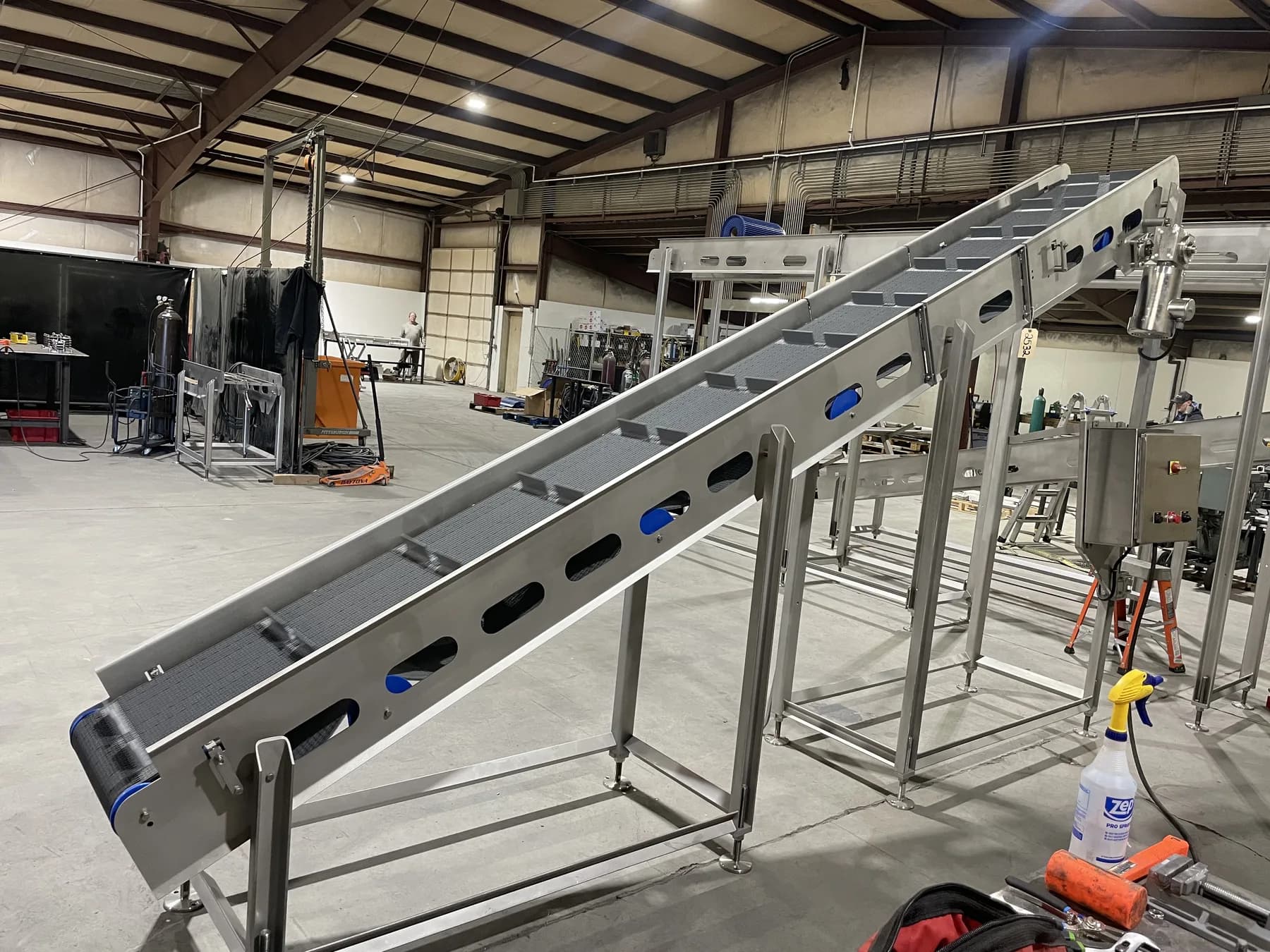

Long stainless incline conveyor shown from the lower end — The lower end view shows the long incline path and open frame.

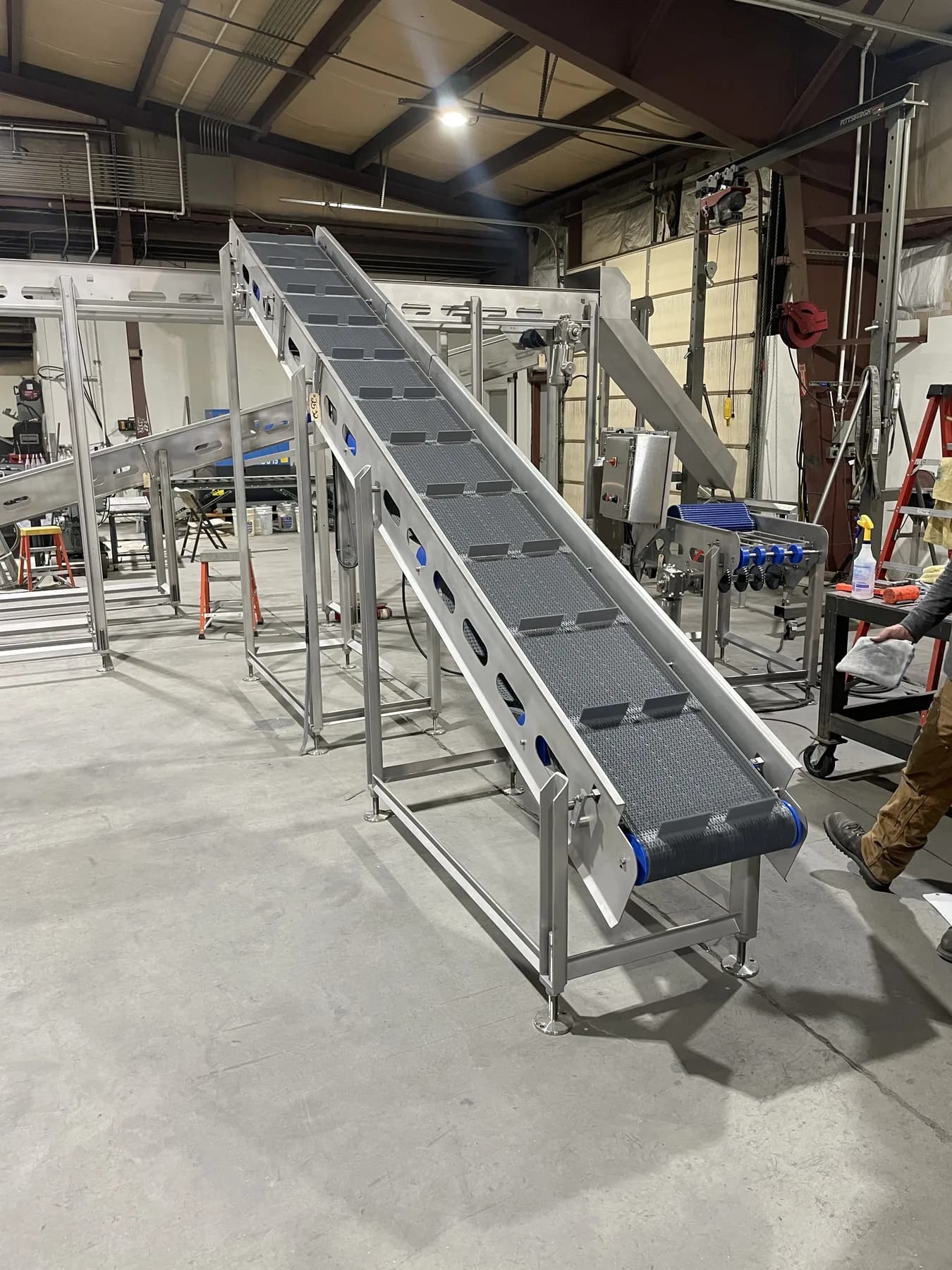

Full side view of long-frame incline conveyor — The side profile emphasizes the extended frame and incline geometry.

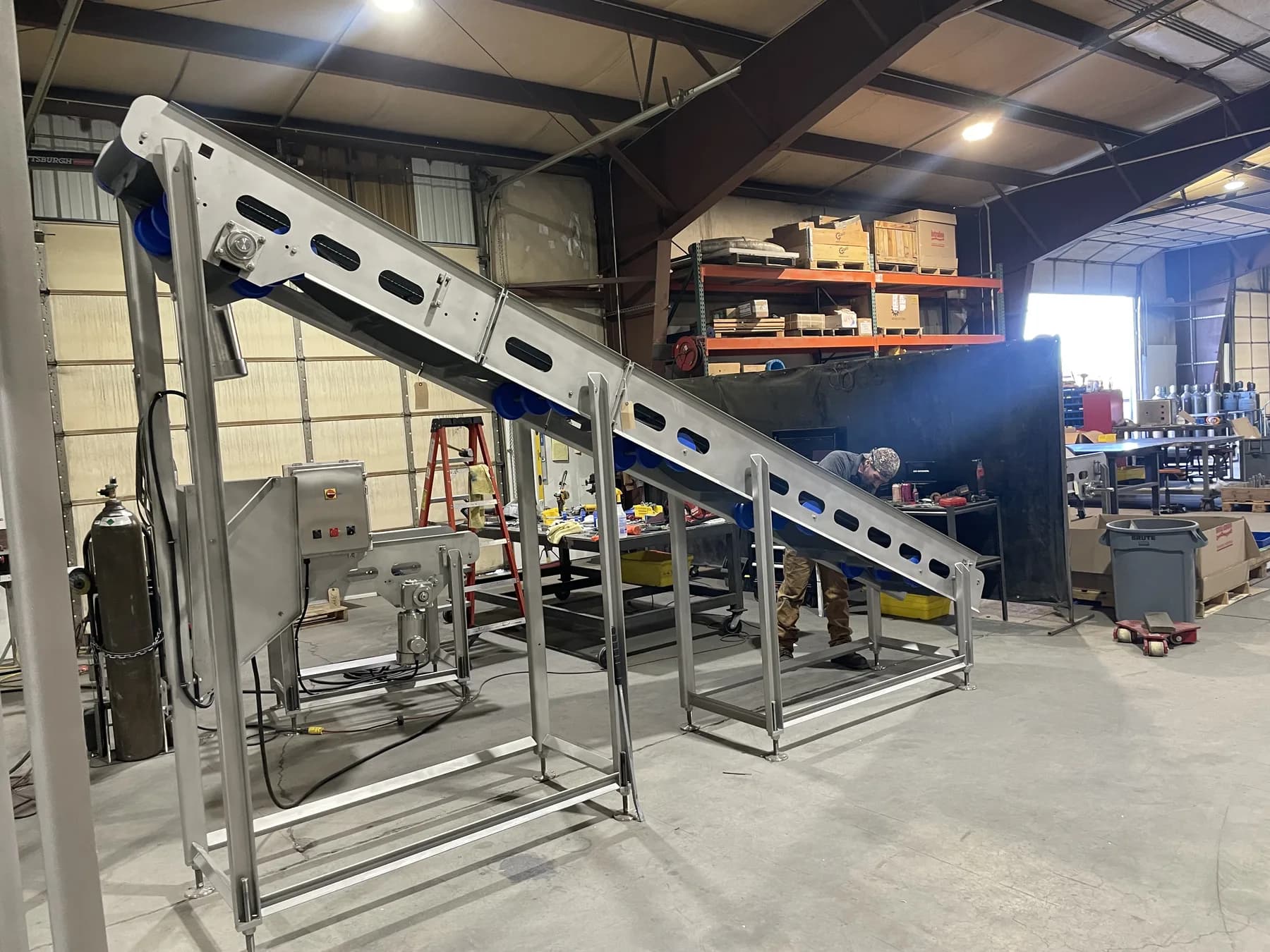

Three-quarter view of stainless incline conveyor and support frame — Support structure and conveyor alignment are visible from the three-quarter view.

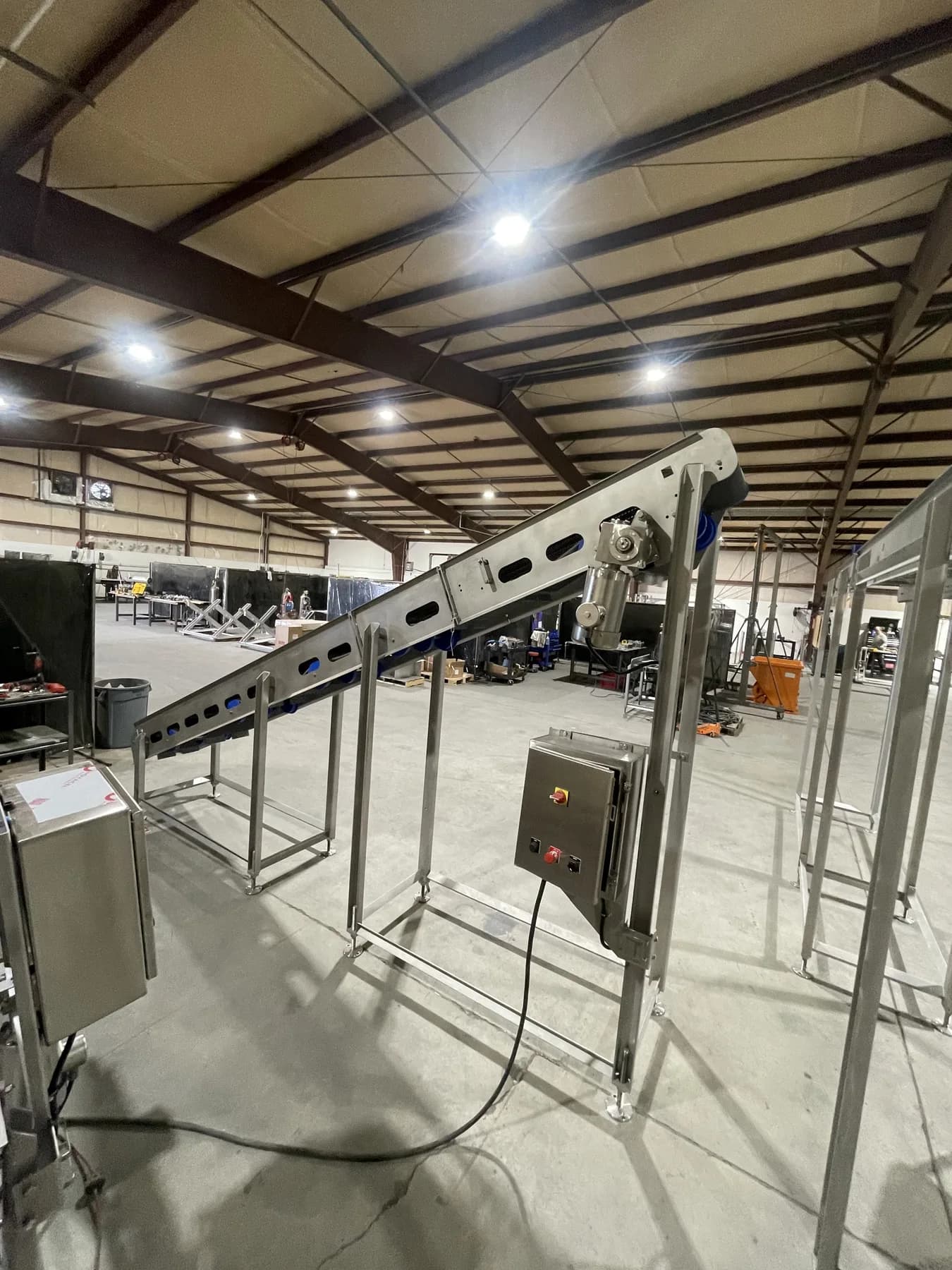

Opposite-side view of long incline conveyor and drive enclosure — The opposite side shows drive-side enclosure and support details.
