High-Angle Modular Incline Conveyor

A compact high-angle conveyor using a modular belt and staged incline geometry for controlled elevation change in a constrained footprint.

High-Angle InclineModular BeltCompact Footprint

High-angle modular incline conveyor with stainless frame and blue belt

Project Overview

A closer look at the visible build details.

Configured to support a steep elevation change, this modular incline conveyor combines stainless framing, a blue modular belt, staged transitions, and visible controls. The compact layout is described only from visible equipment features and prepared project notes.

High-angle modular belt incline

Staged conveyor geometry for elevation change

Stainless frame and support members

Integrated controls mounted to the assembly

Accessible side and rear service areas

Image Gallery

Selected project photos.

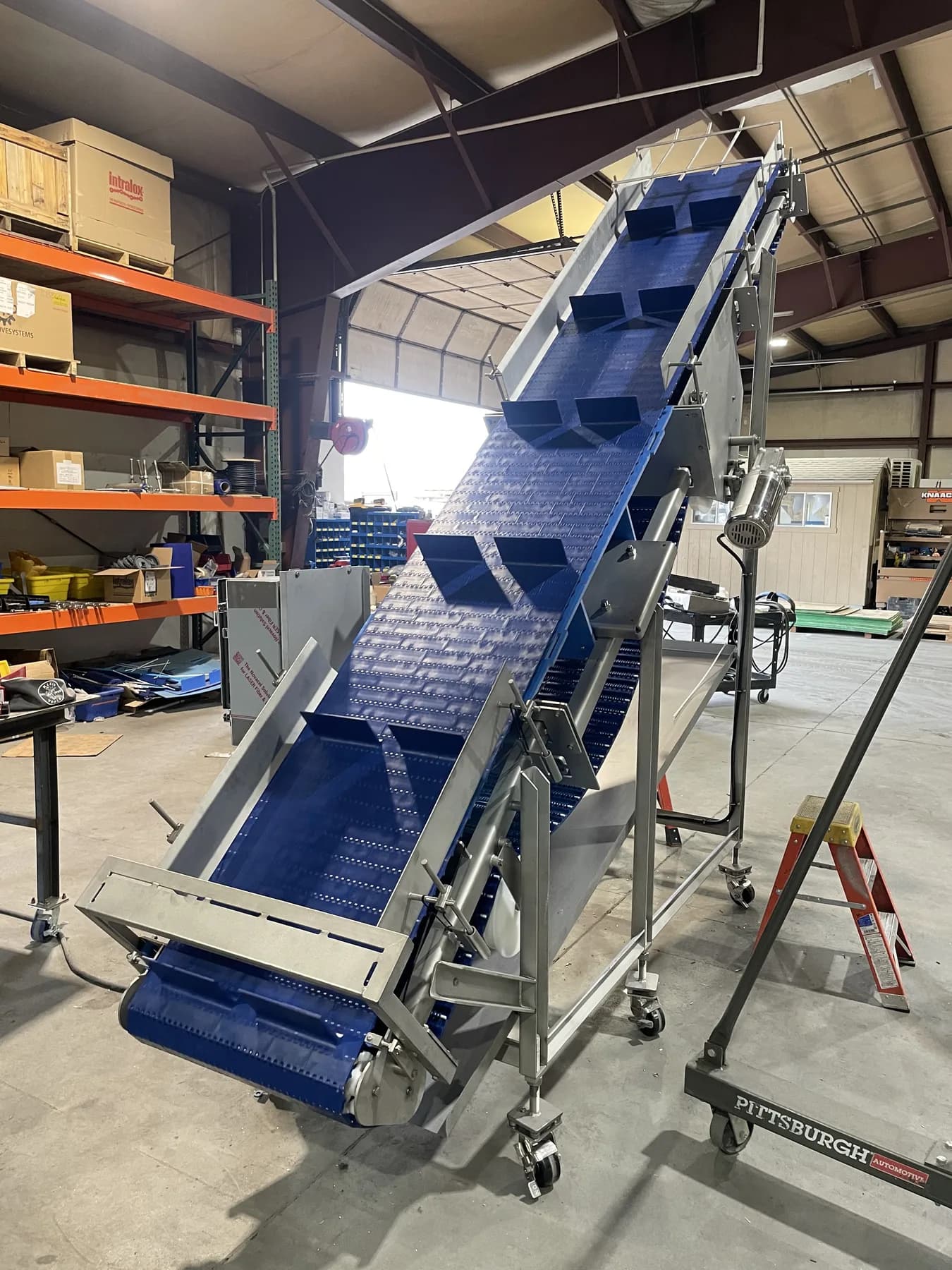

High-angle modular incline conveyor shown from the front-left side — The conveyor uses staged incline geometry within a compact footprint.

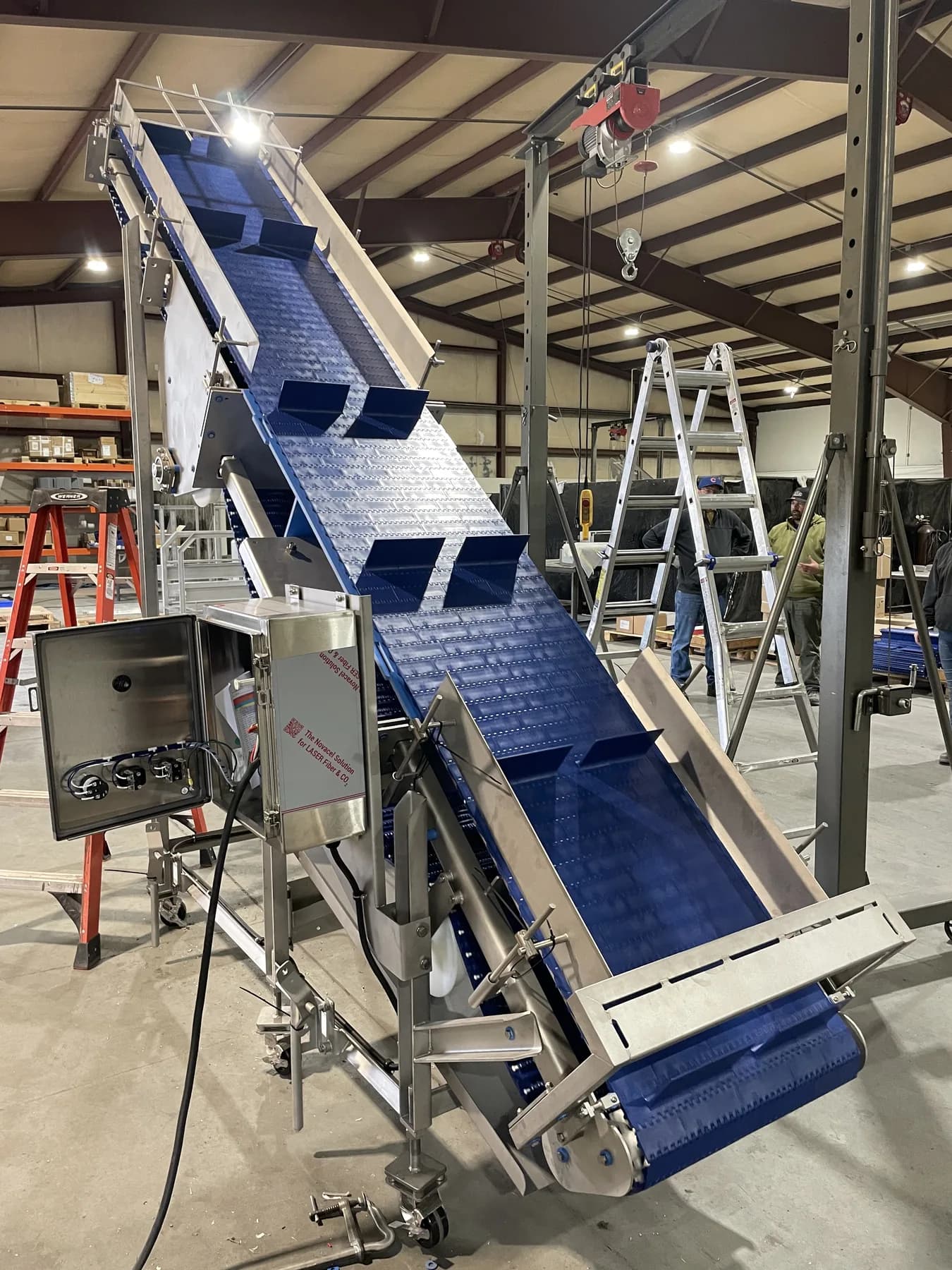

Tall modular incline conveyor with multiple elevation transitions — Multiple belt transitions are visible along the tall incline path.

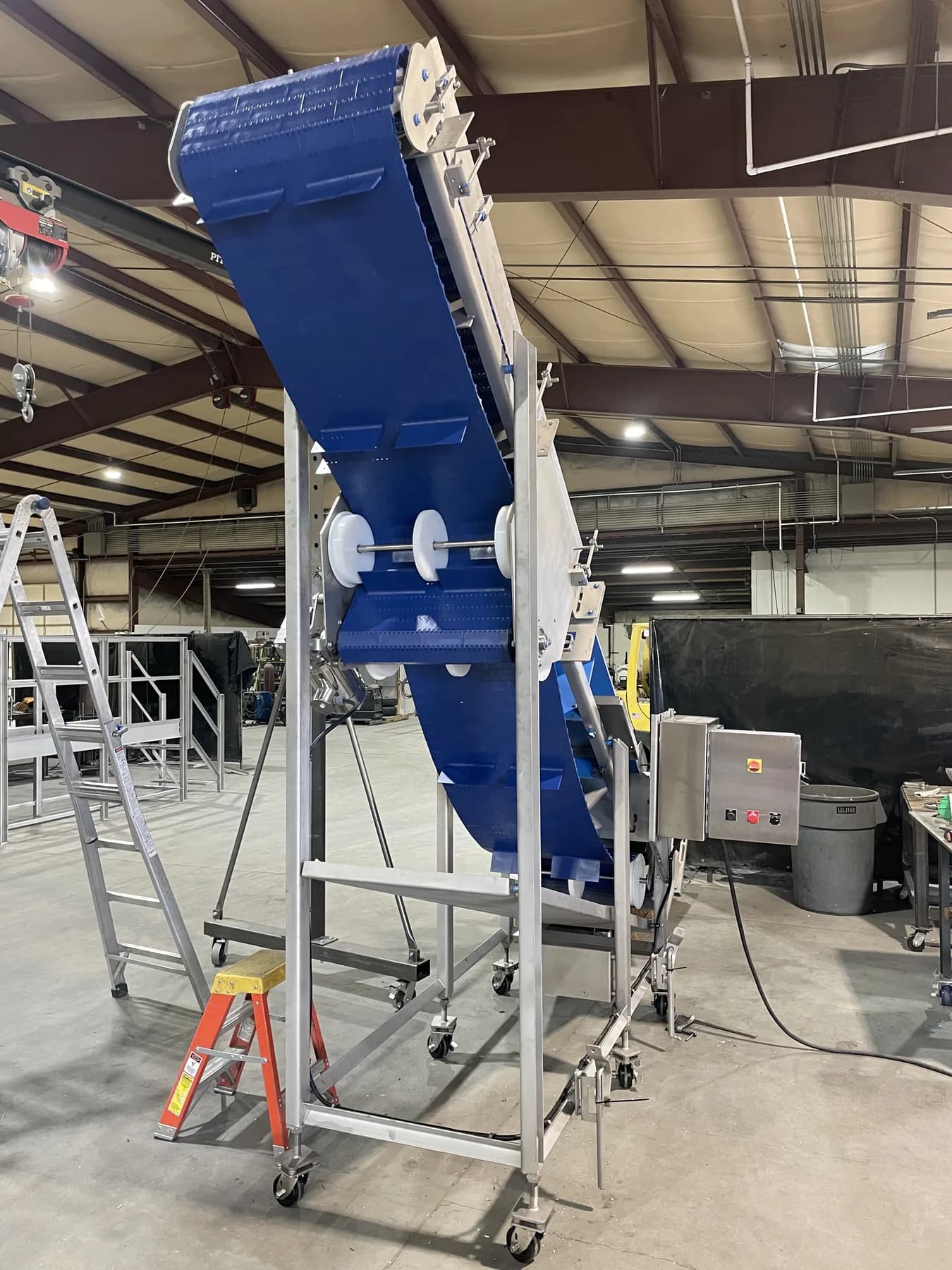

Rear view of high-angle conveyor and stainless support frame — The rear view shows the stainless support frame and drive-side access.

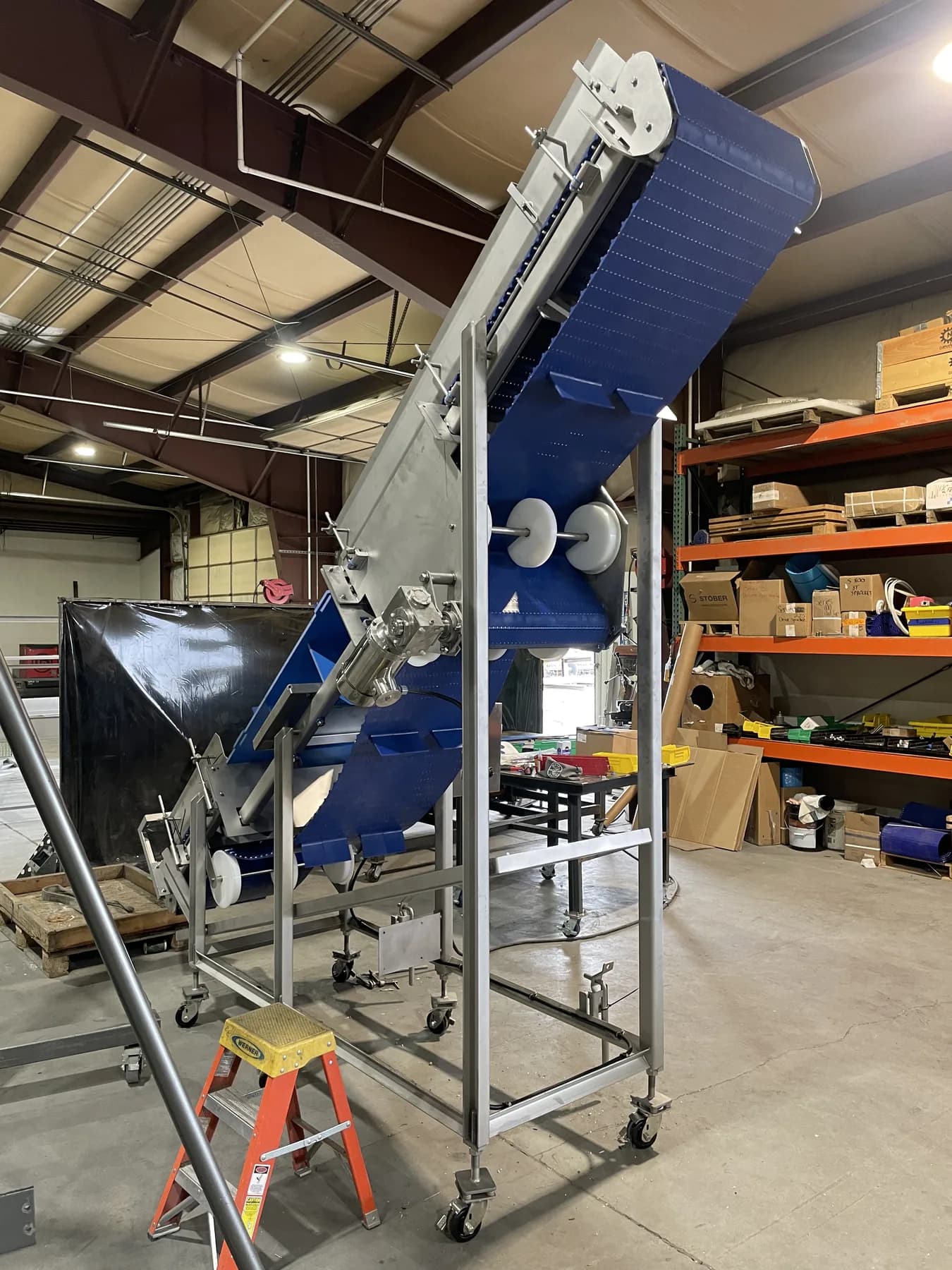

Side view of high-angle modular belt conveyor and controls — Integrated controls are visible along the side of the conveyor frame.

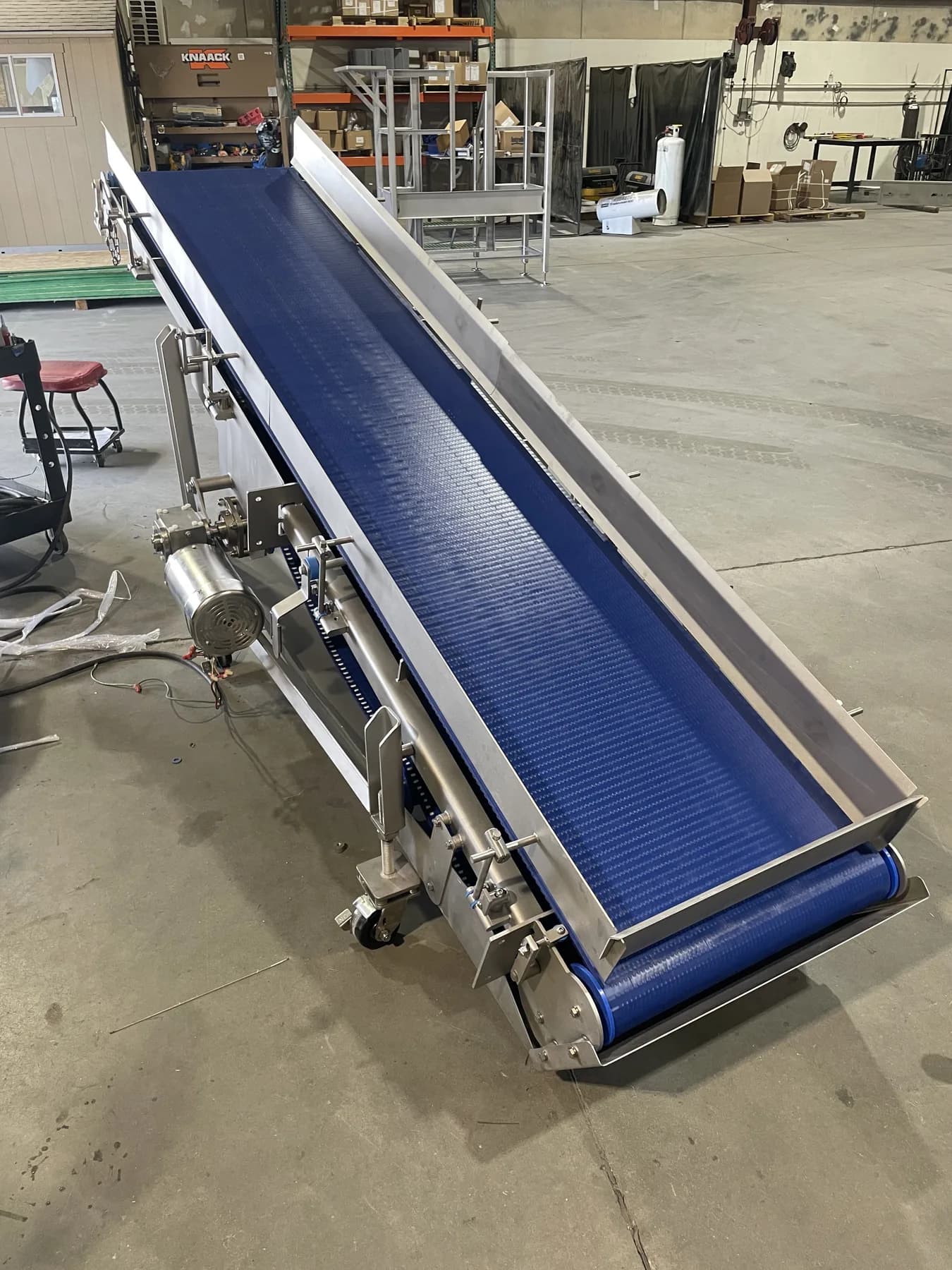

Top-down view along the blue modular incline belt — The top view shows the modular belt path through the incline section.
