Guided Belt Conveyor

A stainless belt conveyor with adjustable guide hardware and pneumatic components configured for controlled product positioning and transfer.

Adjustable GuidesPneumatic ComponentsStainless Conveyor

Guided stainless belt conveyor with adjustable rails and pneumatic components

Project Overview

A closer look at the visible build details.

Built with adjustable guide rails, pneumatic components, and a stainless conveyor frame, this guided belt conveyor is configured around controlled product positioning. The visible layout supports inspection of guide hardware, belt path, and transfer details.

Adjustable side guide hardware

Pneumatic components mounted near the product path

Stainless frame and support structure

Blue belt with guarded transfer areas

Accessible side and discharge-end details

Image Gallery

Selected project photos.

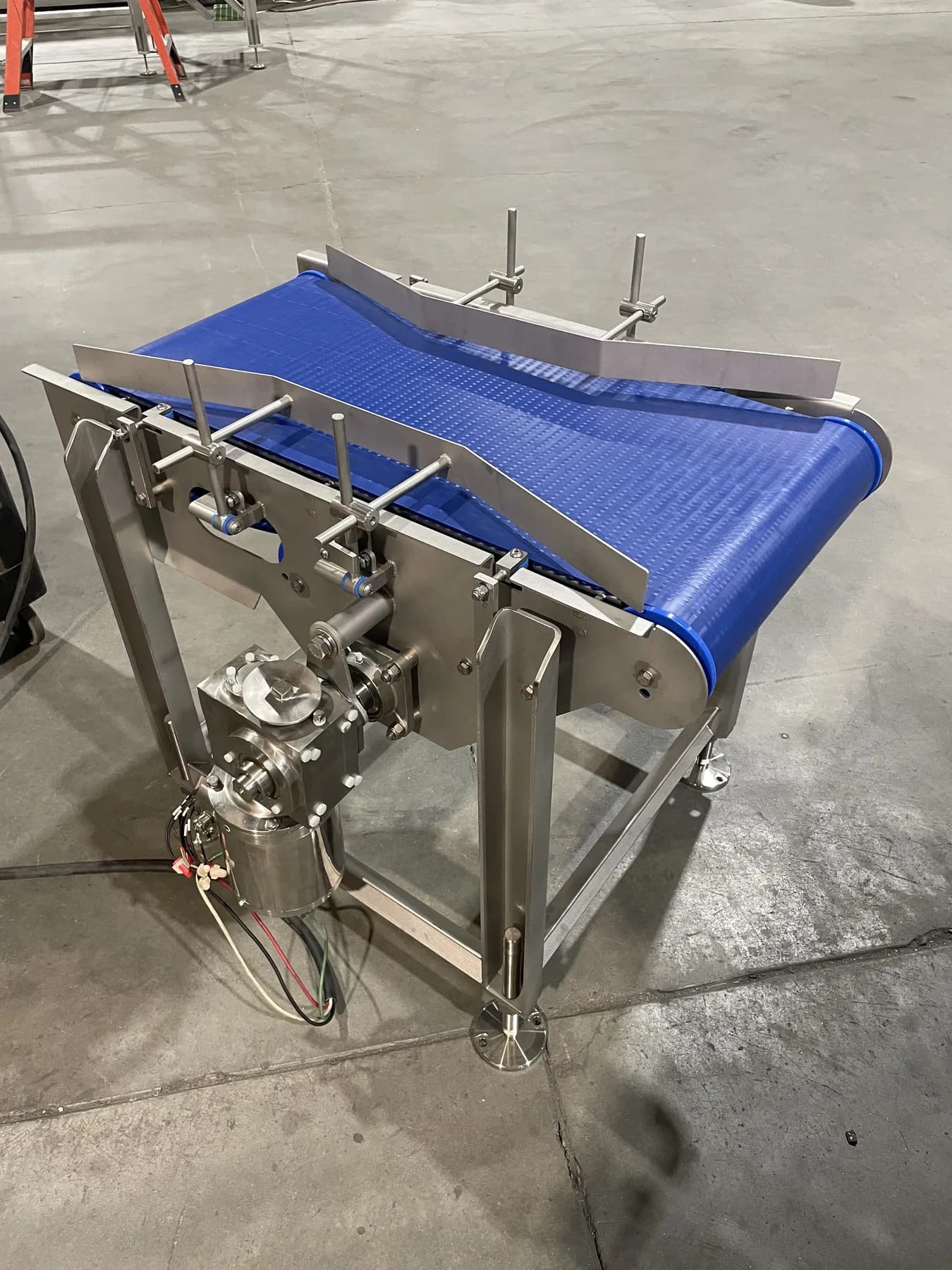

Guided stainless belt conveyor with adjustable side rails and pneumatic components — Adjustable side rails and pneumatic hardware are arranged along the conveyor body.

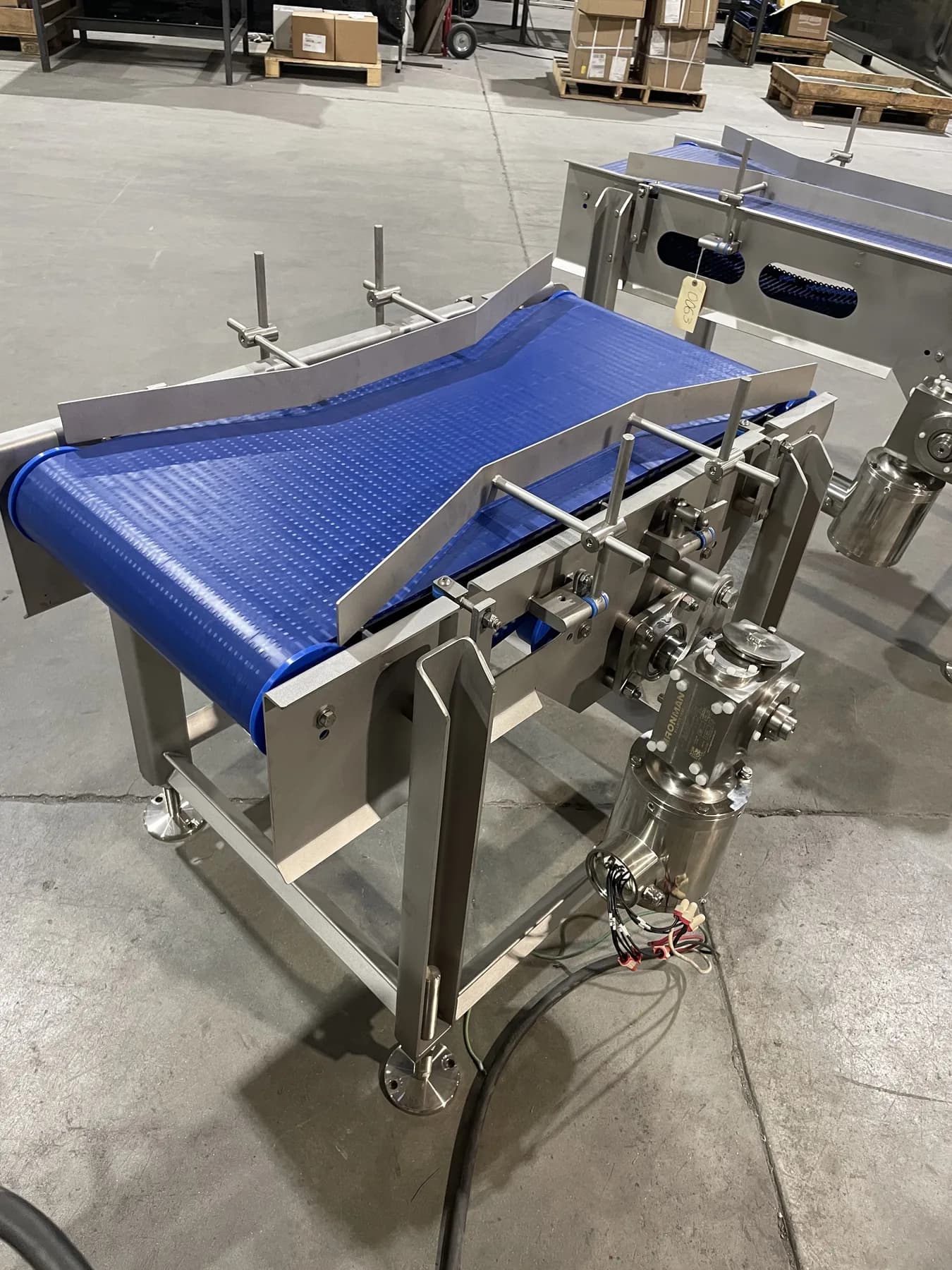

Three-quarter view of guided blue belt conveyor — The three-quarter view shows the guided belt path and stainless support frame.

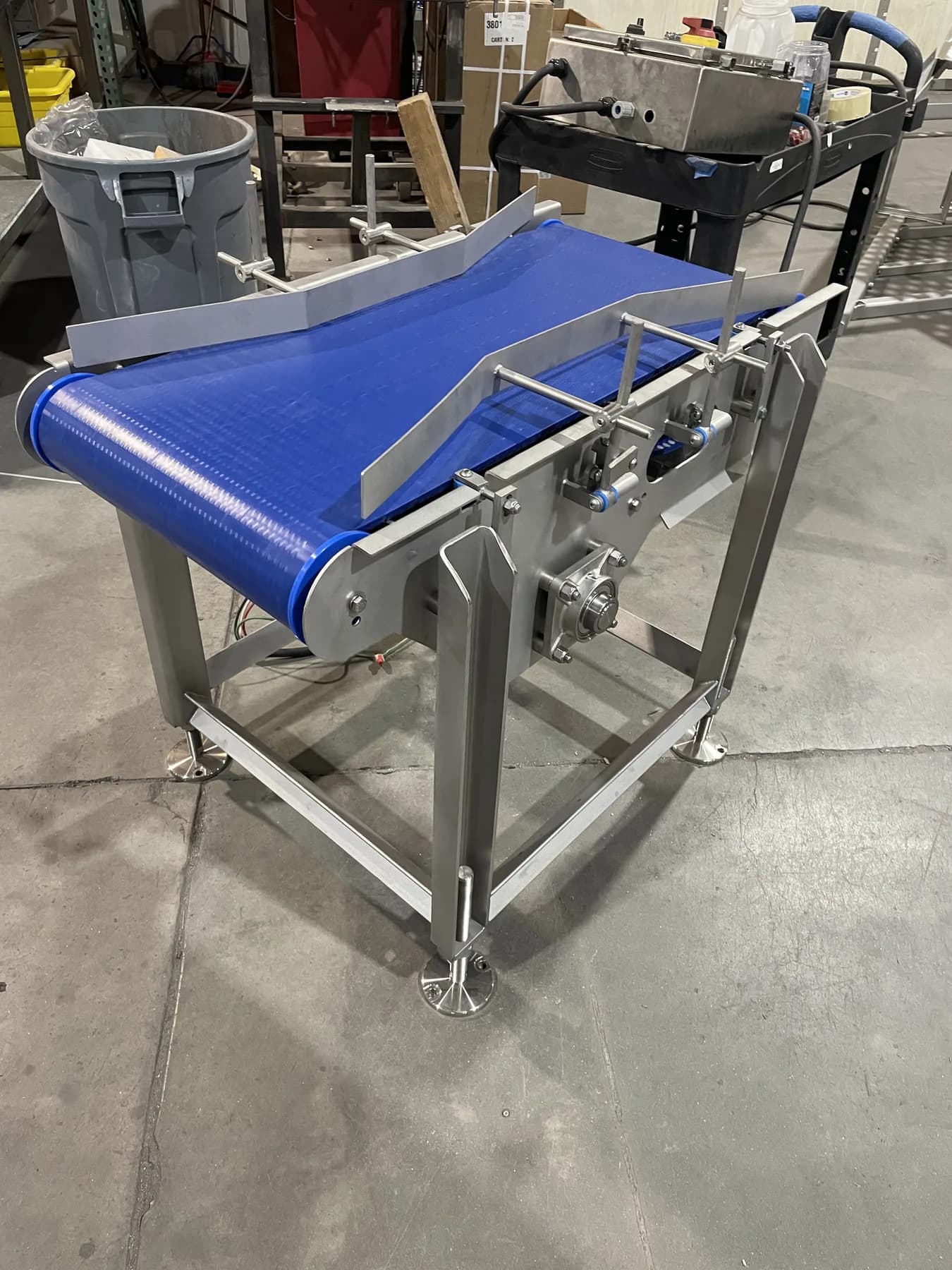

Side view of stainless conveyor frame and guide rail assembly — Side-mounted guide hardware is visible along the product path.

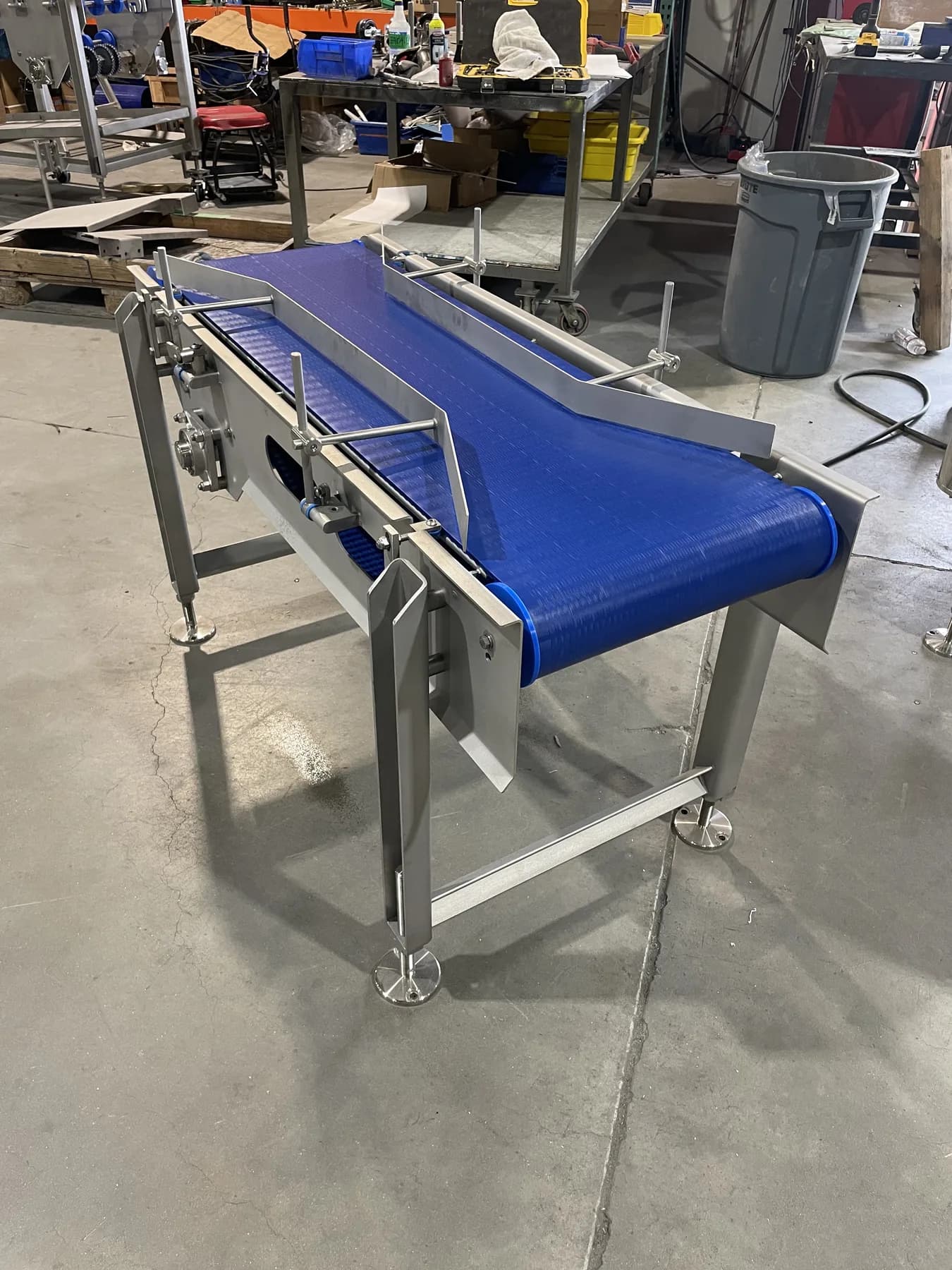

Rear three-quarter view of guided belt conveyor — Rear framing and transfer geometry are visible from the service side.

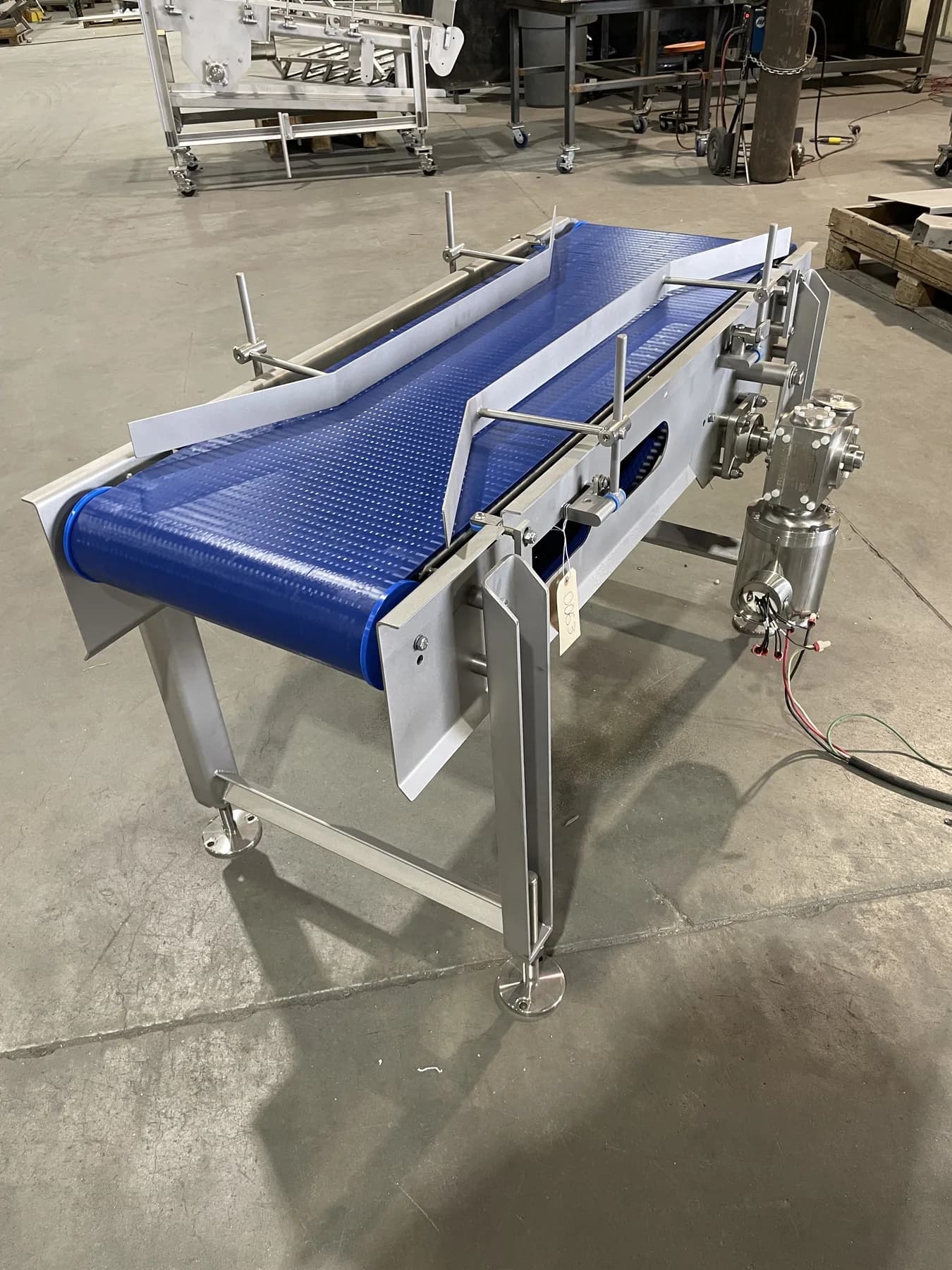

Discharge-end view of conveyor belt and adjustable guide hardware — The discharge end includes guide hardware around the belt transition.
