Elevated Conveyor System

An elevated stainless conveyor structure designed to move product above the production floor while preserving access below the line.

Elevated ConveyorStainless FrameCustom Integration

Elevated stainless conveyor system supported above the shop floor

Project Overview

A closer look at the visible build details.

Built with an elevated support frame and a long conveyor path, this system is configured to carry product above floor-level activity. The visible structure emphasizes clearance, belt support, and integration geometry without relying on fabricated performance or installation claims.

Elevated stainless support structure

Long modular belt conveyor path

Inclined transition at the discharge section

Open clearance below the conveyor run

Custom support geometry for overhead routing

Image Gallery

Selected project photos.

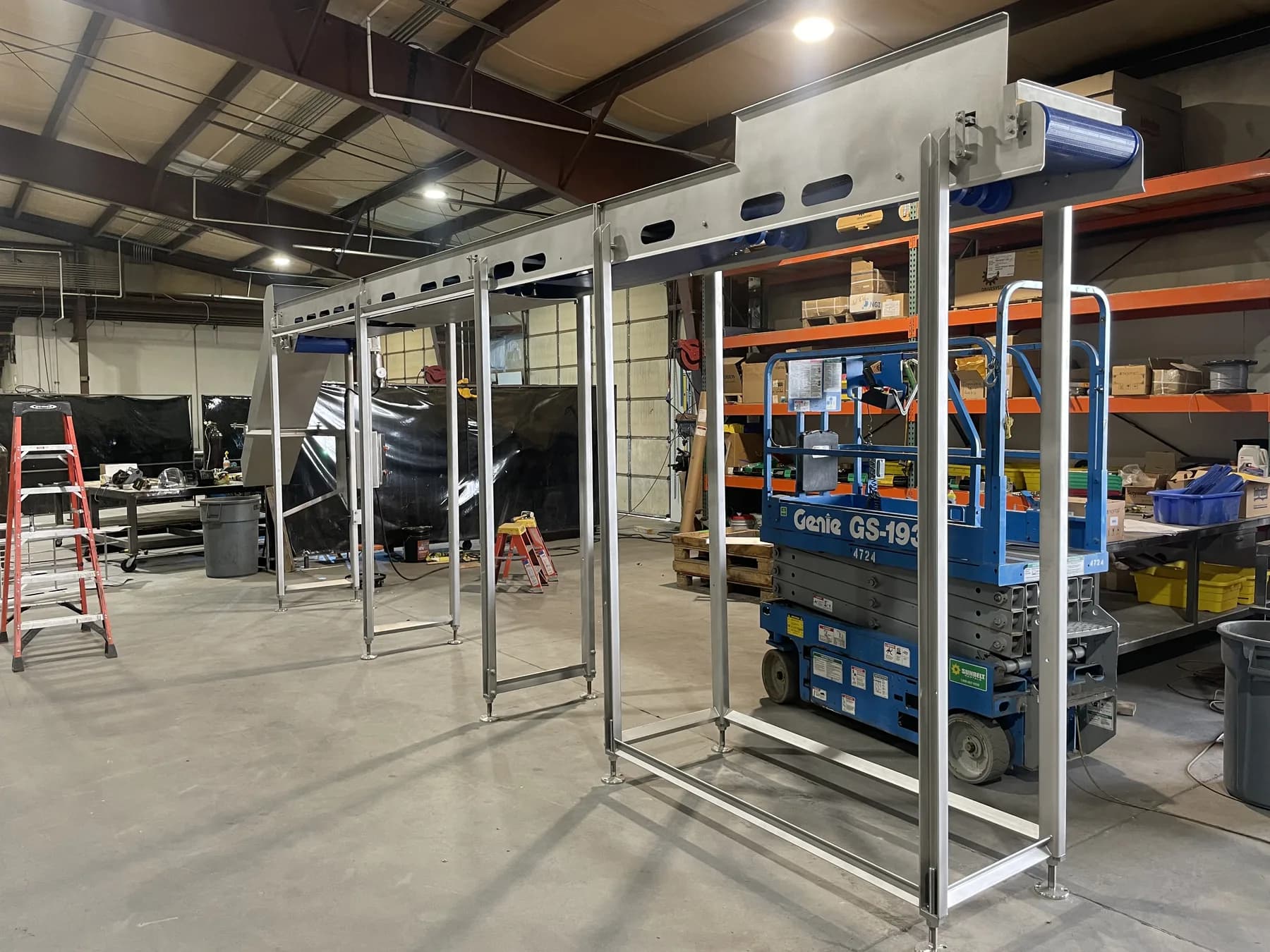

Long elevated stainless conveyor supported above the shop floor — A long elevated conveyor run is supported by a stainless frame structure.

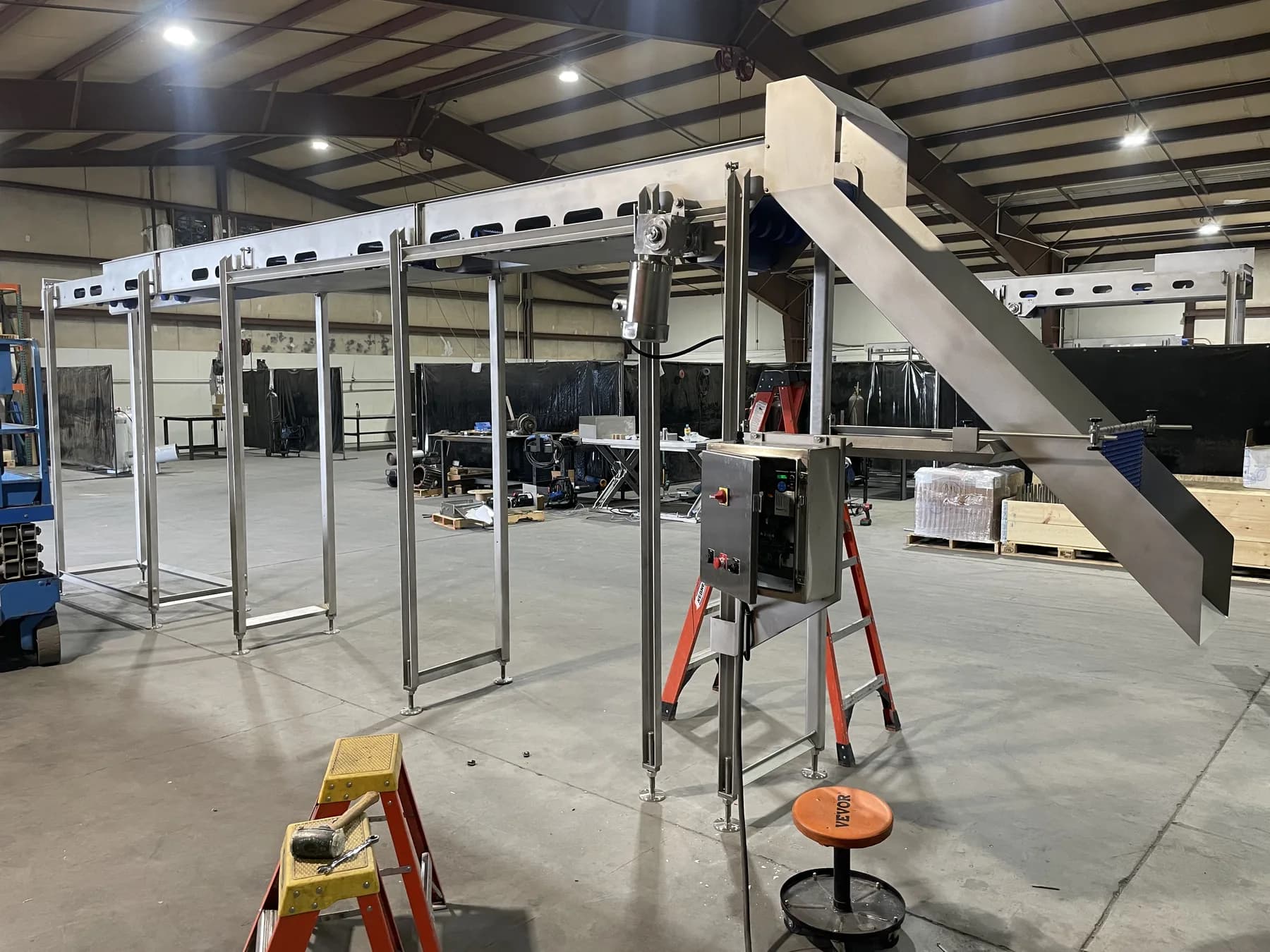

Elevated conveyor with inclined discharge transition and support structure — The discharge end includes an inclined transition and supporting structure.

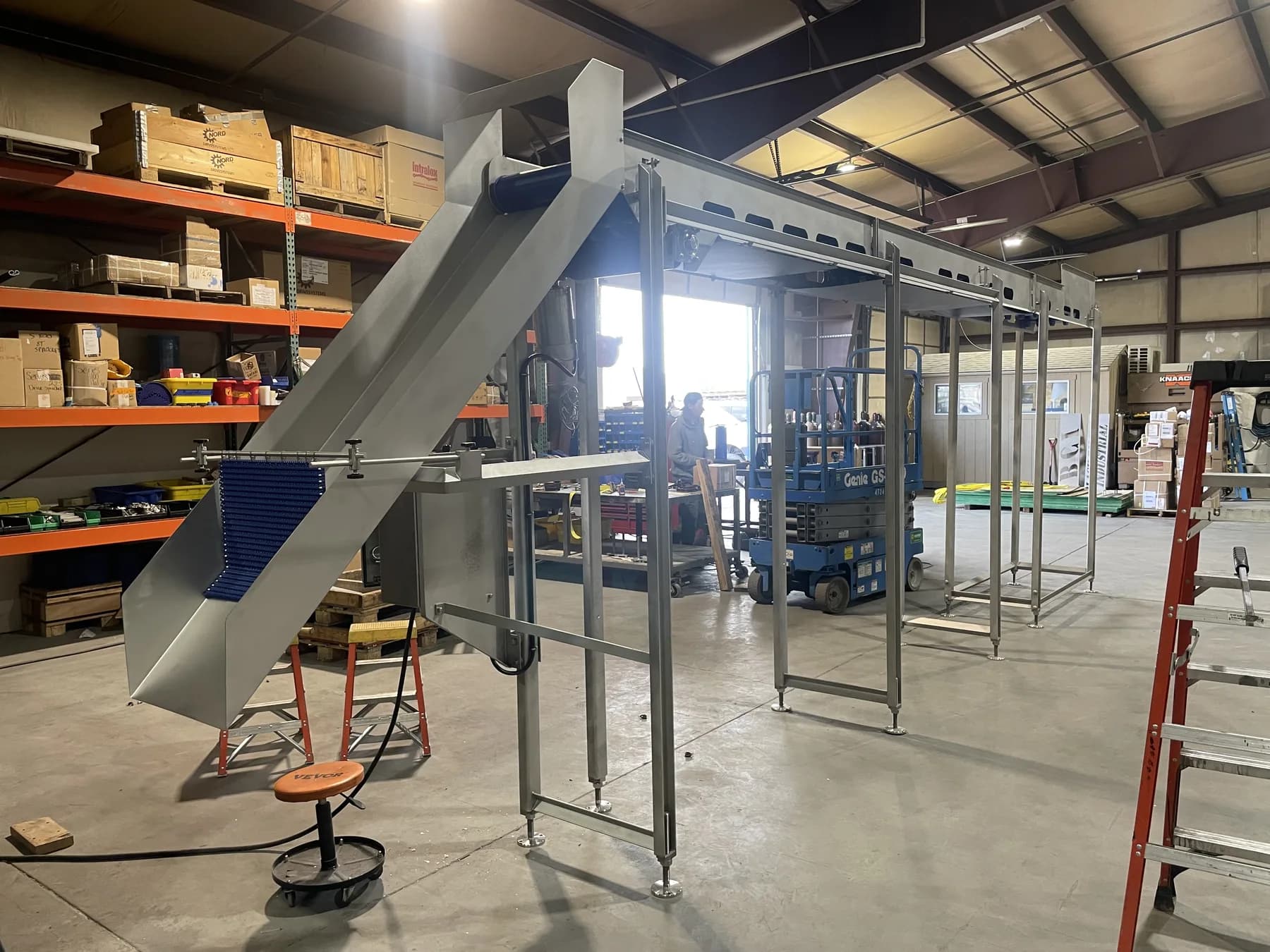

Full elevated conveyor system with modular belt and structural supports — Visible supports keep the belt path elevated while leaving clearance below.

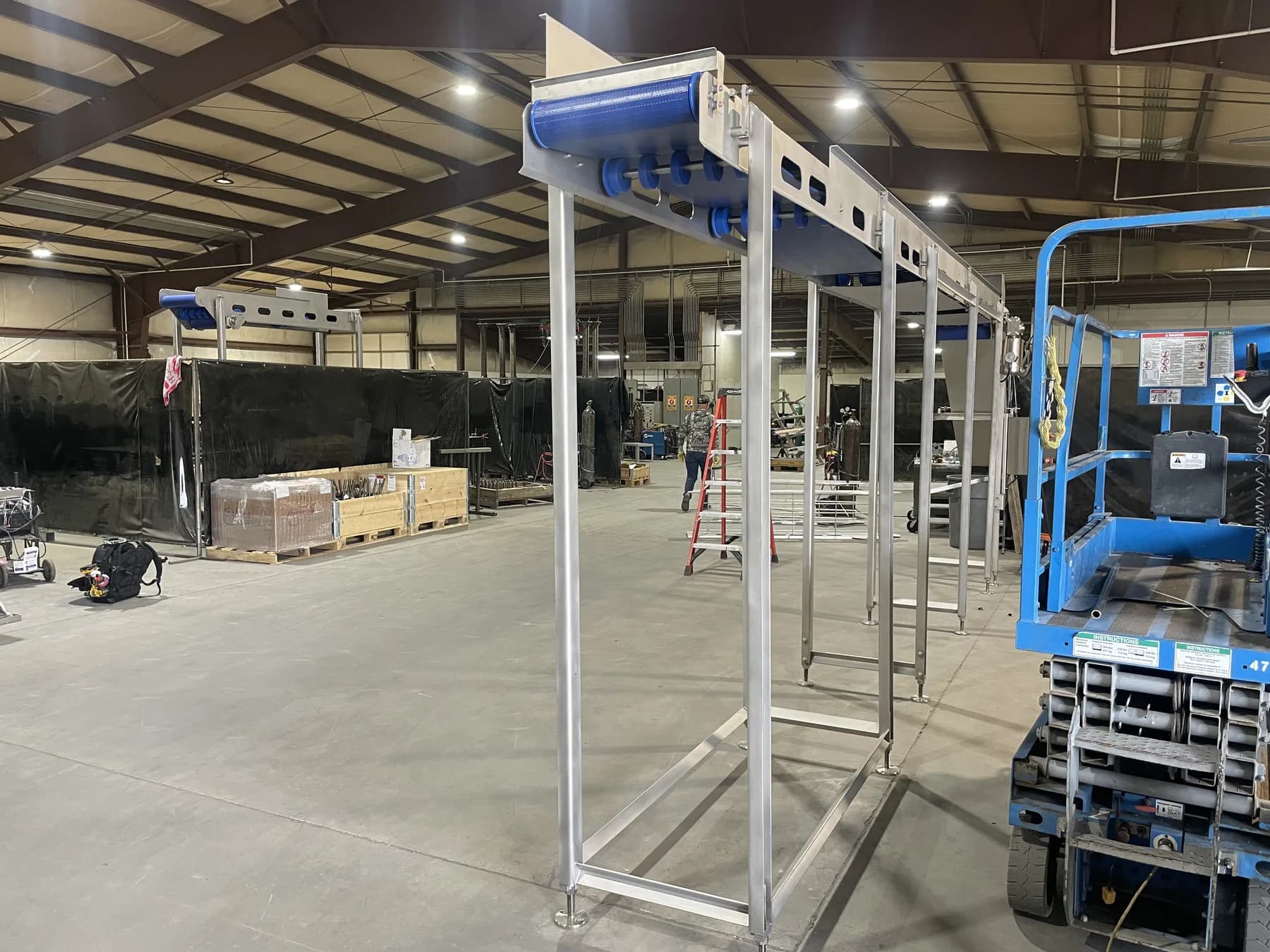

End view of elevated conveyor belt and stainless support frame — End framing and belt alignment details are visible from the discharge side.
